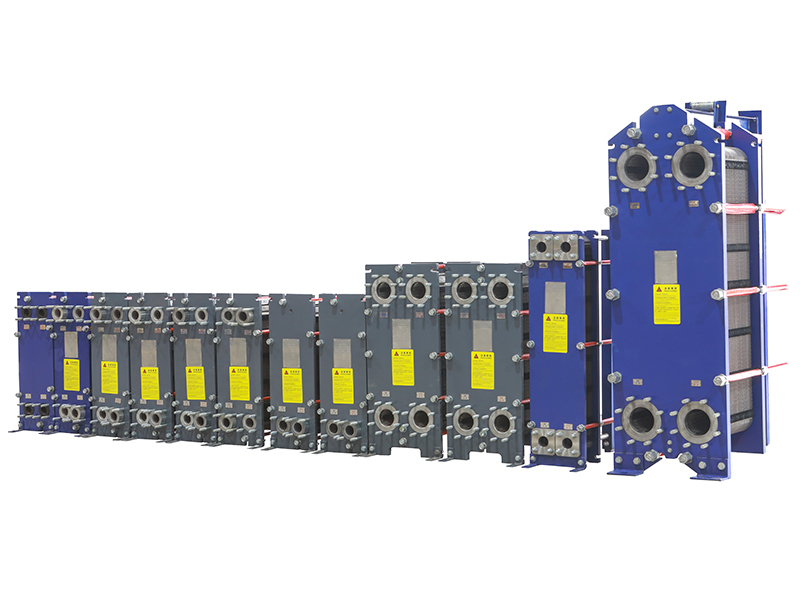

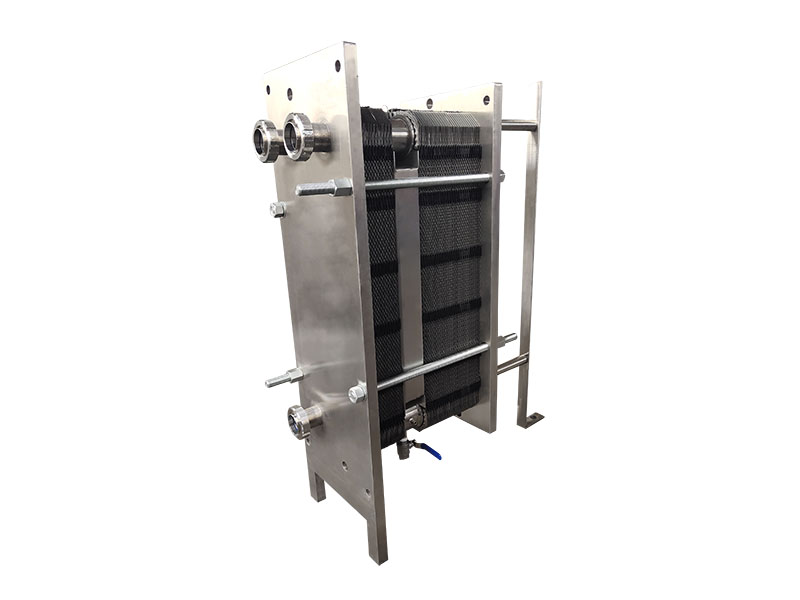

Detachable plate heat exchanger

---

---

---

Accurate multi-point positioning system for easy maintenance

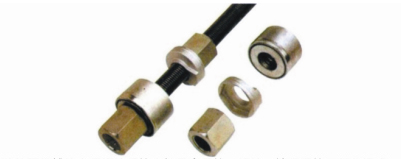

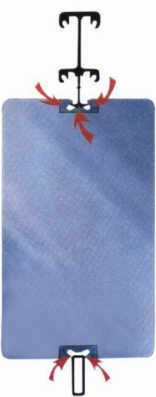

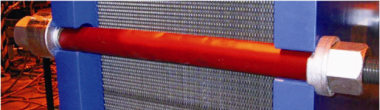

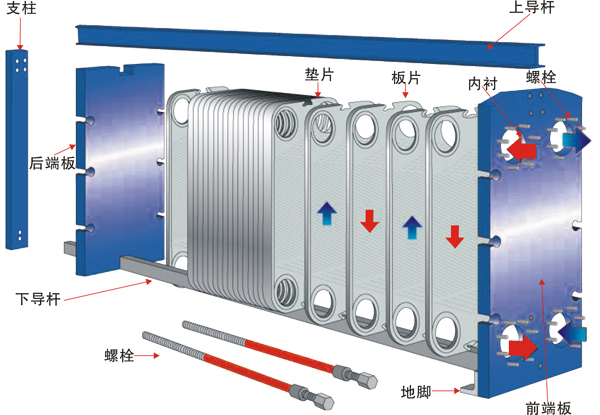

The clamping bolt system consists of a bearing box system, a bolt and a locking system. The bearing housing system allows the bolts to be quickly and accurately positioned and easily tightened. The locking system prevents the bolts from tightening when the detachable plate heat exchanger uses a precise multi-point positioning system. The four-corner positioning system with a corner hole diameter of 100mm or less allows the upper and lower guide rods to be precisely fitted together. The five-point positioning system of the angle hole direct release 150mm or more allows the positioning of the plate to be determined by a plurality of metal-to-metal contact points, wherein the contact point of the upper guide bar prevents the plate from moving up and down, and the lower guide bar contacts. The point can limit the movement of the sheet from left to right. The multi-point positioning technology allows the plate group to move back and forth without any resistance on the guide bar. It is easy and simple to complete the maintenance work, and the plate can be properly assembled during the reassembly, so that the gasket is sealed accurately. Poor, the plate group reached a full reset. This ensures that the life of the heat exchanger is long after disassembly and assembly. Moreover, the plate heat exchanger with multi-point positioning system only needs one person. Even without any experience, the heat exchanger can be easily disassembled with a simple tool, which is unmatched by other plate heat exchanger products. Turn. All bolts are rolled and coated with anti-corrosion materials and lubricating oil, plastic cover with outer cover, heavy hex nuts make the whole disassembly process easy, and all clamping bolts can be removed and installed from the side for easy disassembly, clamping bolts The design is easy to disassemble.

---

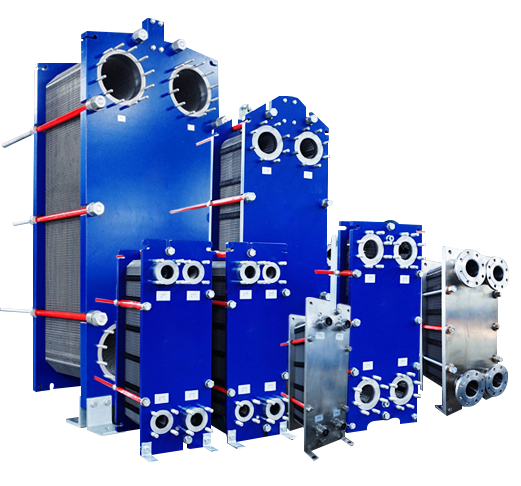

Jiangsu Bink plate heat exchanger part of the product model

Bink 6 series detachable plate heat exchanger product specification data sheet
6 series product model	Take over	Area	Max pieces	Max flow	Plate thickness	Product height	Product width	Plate height	Plate width	Corner hole spacing	Clamping size
				m³/h	mm	mm	mm	mm	mm	mm	mm
BK25-601	DN32	0.094㎡	320	15	0.5/0.6	790	190	739	125	668*60	N*(2.5+X)
BK25-602	DN32	0.04㎡	80	15	0.5/0.6	480	180	429	125	357*60	N*(2.5+X)
BK20-603	DN50	0.11㎡	80	36	0.5/0.6	737	245	643	193	553*100	N*(2.0+X)
BK30-604	DN50	0.10㎡	60	36	0.5/0.6	737	245	642	192	553*100	N*(3.0+X)
BK20-605	DN50	0.19㎡	280	36	0.5/0.6	920	320	747	248	640*140	N*(2.0+X)
BK30-606	DN50	0.18㎡	200	36	0.5/0.6	920	320	747	248	640*140	N*(3.0+X)
BK20-607	DN50	0.33㎡	280	36	0.5/0.6	1294	320	1148	248	1036*140	N*(2.0+X)
BK40-608	DN65	0.15㎡	140	60	0.5/0.6	704	400	506	329	380*203	N*(4.0+X)
BK20-609	DN80	0.23㎡	310	90	0.5/0.6	890	400	748	329	606*196	N*(2.0+X)
BK30-610	DN80	0.21㎡	200	90	0.5/0.6	890	400	748	329	606*196	N*(3.0+X)
BK25-611	DN100	0.30㎡	380	145	0.5/0.6	1084	470	871	371	719*225	N*(2.5+X)
BK40-612	DN100	0.28㎡	270	145	0.5/0.6	1084	470	871	371	719*225	N*(4.0+X)
BK20-613	DN100	0.63㎡	650	145	0.5/0.6	1881/1923	480	1499	371	1338*225	N*(2.0+X)
BK25-614	DN100	0.63㎡	460	145	0.5/0.6	1881/1923	480	1499	371	1338*225	N*(2.5+X)
BK25-615	DN150	0.75㎡	690	320	0.5/0.6	1815/1940	610/650	1498	498	1294*298	N*(2.5+X)
BK40-616	DN150	0.75㎡	410	320	0.5/0.6	1815/1940	610/650	1498	498	1294*298	N*(4.0+X)
BK25-617	DN150	1.38㎡	690	320	0.5/0.6	2752	610/637	2250	498	2035*288	N*(2.5+X)
BK20-618	DN200	1.13㎡	680	570	0.5/0.6	2105	780	1749	621	1478*353	N*(2.0+X)
BK40-619	DN200	1.06㎡	400	570	0.5/0.6	2105	780	1745	620	1478*353	N*(4.0+X)
BK30-620	DN200	1.11㎡	680	570	0.5/0.6	2165/2105	780	1749	621	1478*353	N*(3.0+X)
BK40-621	DN200	0.45㎡	290	570	0.5/0.6	1405	740	961	621	698*363	N*(4.0+X)
BK25-622	DN250/DN200	1.88㎡	940	890	0.5/0.6	2595/2895	920	2246	746	1939*439	N*(2.5+X)
BK40-623	DN250/DN200	1.85㎡	630	890	0.5/0.6	2595/2895	920	2246	746	1939*439	N*(4.0+X)
BK33-624	DN300/DN350	2.30㎡	720	1300	0.5/0.6	2882/3082	1150/1170	2245	995	1842*596	N*(3.3+X)
BK33-625	DN300/DN350	2.32㎡	910	1800	0.5/0.6	2875	1174	2757	998	2336*578	N*(3.3+X)
BK25-626	DN350/DN300	2.70㎡	1360	1800	0.5/0.6	3210	1154	2598	998	2177*578	N*(2.5+X)
BK33-627	DN350/DN300	1.56㎡	910	1800	0.5/0.6	2375	1174	2257	998	1433*578	N*(3.3+X)
Remarks: 1. The above product data is for reference only. The accurate product data is subject to the product design book and product drawings issued by our company. 2, the above products are the main product series of our company, our company can also provide other models of various models, please contact our technical department for consultation.

Bink 8 series detachable plate heat exchanger product specification data sheet
8 series product model	Take over	Area	Max pieces	Max flow	Plate thickness	Product height	Product width	Plate height	Plate width	Corner hole spacing	Clamping size
				m³/h	mm	mm	mm	mm	mm	mm	mm
BK26-801	DN32	0.05㎡	80	15	0.5/0.6	570	180	550	129	480*61	N*(2.6+X)
BK30-802	DN50	0.15㎡	100	36	0.5/0.6	920	290	780	212	691*118	N*(3.0+X)
BK33-803	DN80	0.30㎡	200	90	0.5/0.6	1178.5	425	999	337	868*212	N*(3.3+X)
BK39-804	DN80	0.30㎡	270	90	0.5/0.6	1178.5	425	999	337	868*212	N*(3.9+X)
BK39-805	DN100	0.46㎡	270	145	0.5/0.6	1440	425	1400	425	1227*257	N*(3.9+X)
BK32-806	DN100	0.30㎡	340	145	0.5/0.6	1110	540	897	445	707*262	N*(3.2+X)
BK32-807	DN100	0.52㎡	470	145	0.5/0.6	1515/1547	540	1303	445	1113*262	N*(3.2+X)
BK32-808	DN100	0.76㎡	480	145	0.5/0.6	1953	540	1709	445	1519*262	N*(3.2+X)
BK32-809	DN150	0.62㎡	490	320	0.5/0.6	1507/1606	640	1320	541	1092*314	N*(3.2+X)
BK32-810	DN150	0.96㎡	590	320	0.5/0.6	2086	640	1800	541	1572*314	N*(3.2+X)
BK32-811	DN250	1.10㎡	550	890	0.5/0.6	2110	895	1736	745	1406*420	N*(3.2+X)
BK32-812	DN250	1.70㎡	590	890	0.5/0.6	2704	895	2330	745	2000*420	N*(3.2+X)
BK32-813	DN350	1.74㎡	690	1800	0.5/0.6	2524	1136	2140	995	1692*559	N*(3.2+X)
BK32-814	DN350	1.70㎡	690	1800	0.5/0.6	3113	1136	2477	995	2029*559	N*(3.2+X)
BK32-815	DN500	2.40㎡	1250	3600	0.5/0.6	3257	1415	2503	1242	1898*712	N*(3.2+X)
BK50-816	DN100	0.52㎡	390	145	0.8	1712	535	1406	432	1227*257	N*(5.0+X)
BK12-817	DN200	1.00㎡	400	570	1.0	2205	760	1759	665	1526*404	N*(12.0+X)
Remarks: 1. The above product data is for reference only. The accurate product data is subject to the product design book and product drawings issued by our company. 2, the above products are the main product series of our company, our company can also provide other models of various models, please contact our technical department for consultation.

Bink 1 series detachable plate heat exchanger product specification data sheet
1  series product model	Take over	Area	Max pieces	Max flow	Plate thickness	Product height	Product width	Plate height	Plate width	Corner hole spacing	Clamping size
				m³/h	mm	mm	mm	mm	mm	mm	mm
BK20-101	DN50	0.20㎡	280	36	0.5/0.6	970	320	797	248	690*140	N*(2.0+X)
BK30-102	DN50	0.19㎡	200	36	0.5/0.6	970	320	797	248	690*140	N*(3.0+X)
BK25-103	DN100	0.32㎡	380	145	0.5/0.6	1134	470	921	371	769*225	N*(2.5+X)
BK40-104	DN100	0.30㎡	270	145	0.5/0.6	1134	470	921	371	769*225	N*(4.0+X)
BK25-105	DN150	0.79㎡	690	320	0.5/0.6	1865/1990	610/650	1548	498	1344*298	N*(2.5+X)
BK40-106	DN150	0.79㎡	410	320	0.5/0.6	1865/1990	610/650	1548	498	1344*298	N*(4.0+X)
BK40-107	DN150	0.55㎡	410	320	0.5/0.6	1418/1543	610/650	1100	496	897*298	N*(4.0+X)
BK20-108	DN200	1.14㎡	680	570	0.5/0.6	2155	780	1795	620	1528*353	N*(2.0+X)
BK40-109	DN200	1.11㎡	400	570	0.5/0.6	2155	780	1795	620	1528*353	N*(4.0+X)
BK40-110	DN250/DN200	0.81㎡	630	890	0.5/0.6	1669/1815	920/927	2246	746	1013*439	N*(4.0+X)
Remarks: 1. The above product data is for reference only. The accurate product data is subject to the product design book and product drawings issued by our company. 2, the above products are the main product series of our company, our company can also provide other models of various models, please contact our technical department for consultation.

---

Application area / occasion        Plate heat exchangers have been widely used in metallurgy, mining, petroleum, chemical, electric power, medicine, food, chemical fiber, paper, textile, ship, heating, etc., can be used for heating, cooling, evaporation, condensation, sterilization, waste heat Recycling and other situations.
       Solar energy utilization industry: Participate in the heat exchange process of antifreeze liquid such as heat transfer medium in solar collector plates to achieve the purpose of utilizing solar energy.
       Chemical industry: manufacturing titanium oxide, alcohol fermentation, ammonia synthesis, resin synthesis, rubber production, cooling phosphoric acid, cooling formalin, alkali carbon industry, electrolytic alkali production.
       Steel industry: cooling quenching oil, cooling electroplating liquid, cooling reducer lubricating oil, cooling rolling mill, drawing machine coolant.
       Metallurgical industry: heating and cooling of aluminate mother liquor, cooling of sodium aluminate, cooling of aluminum alloy rolling mill lubricant.
       Mechanical manufacturing: various quenching liquid cooling, cooling presses, industrial machine oil, heating engine oil.
       Food industry: salt, dairy, soy sauce, vinegar sterilization, cooling, animal vegetable oil heating, cooling, beer production, beer, wort heating and cooling, sugar, gelatin concentration, sterilization cooling, manufacturing sodium glutamate.
       Textile industry: heat recovery of various waste liquids, cooling of boiling phosphating fibers, cooling of viscose liquid, cooling of acetic acid and acetic anhydride, cooling of aqueous alkali solution, heating and cooling of viscose.
       Paper industry: cooling black liquor, bleaching salt, heating of alkali liquor, cooling, heat recovery of cellophane waste liquid, heating and cooking acid, cooling sodium hydroxide aqueous solution, recovering waste paper of bleached paper, condensing of exhaust gas, preheating Concentrate pulp-like waste.
       Central heating: heating in waste heat districts of thermal power plants, heating of domestic water, heating of boilers.
       Oil industry: heating and cooling synthetic detergent, heating whale oil, cooling vegetable oil, cooling sodium hydroxide, cooling glycerin, emulsified oil.
       Power industry: generator shaft pump cooling, transformer oil cooling.
       Ship: diesel engine, central cooler, unloading water cooler, piston cooler, preheater, desalination system (including multi-stage and single-stage).
       Marine aquaculture seedling industry: supporting boilers to raise the temperature of seedlings to save coal, thereby saving energy and improving efficiency.
       Others: medicine, petroleum, building ceramics, glass, cement, geothermal utilization, etc.
